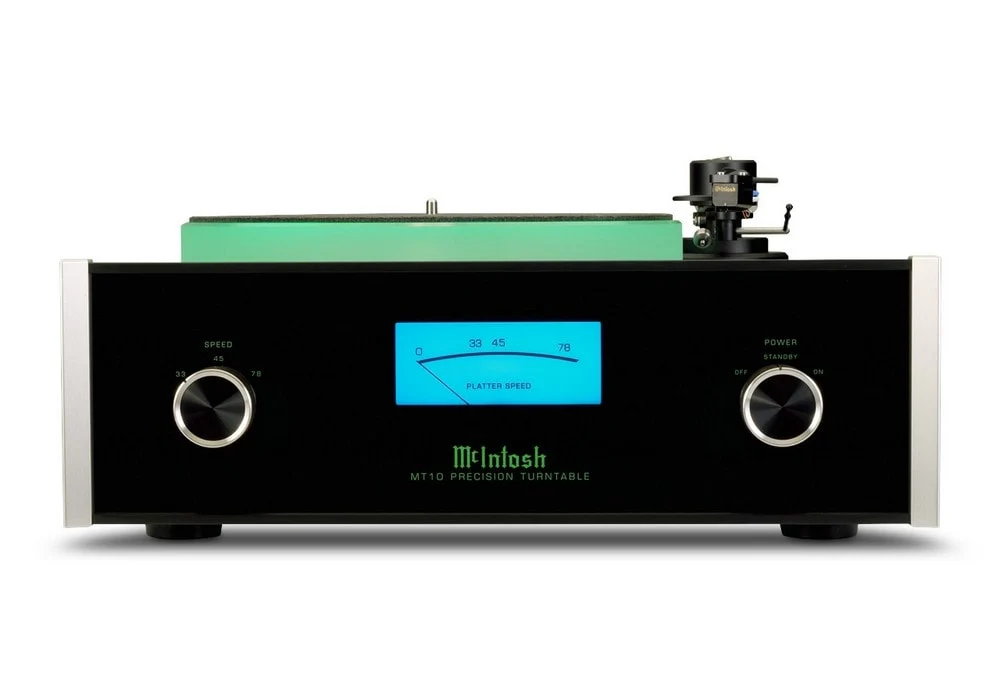

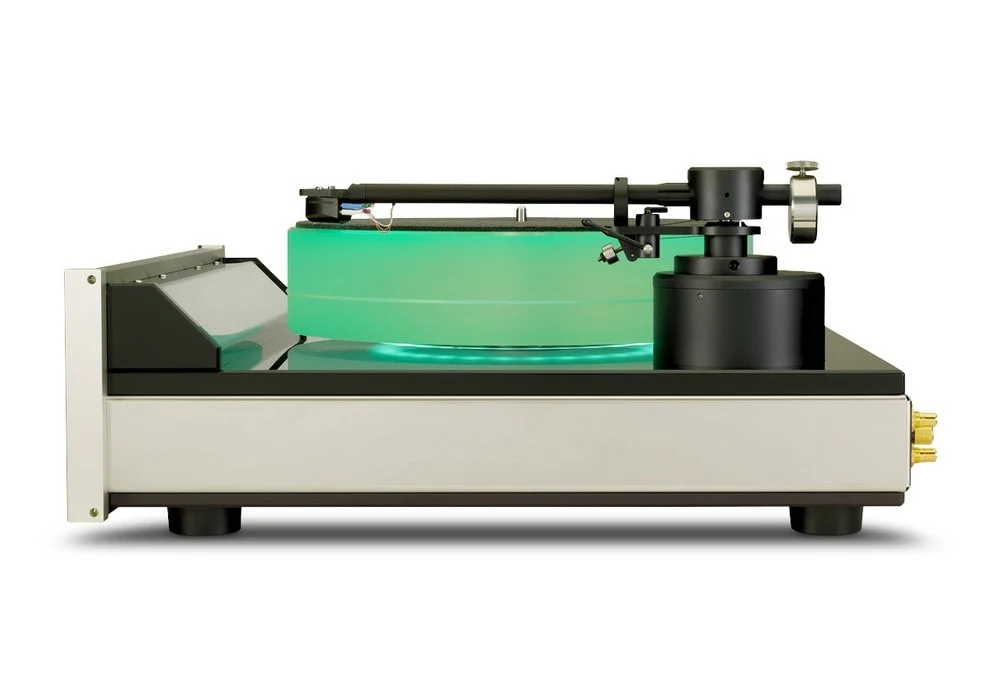

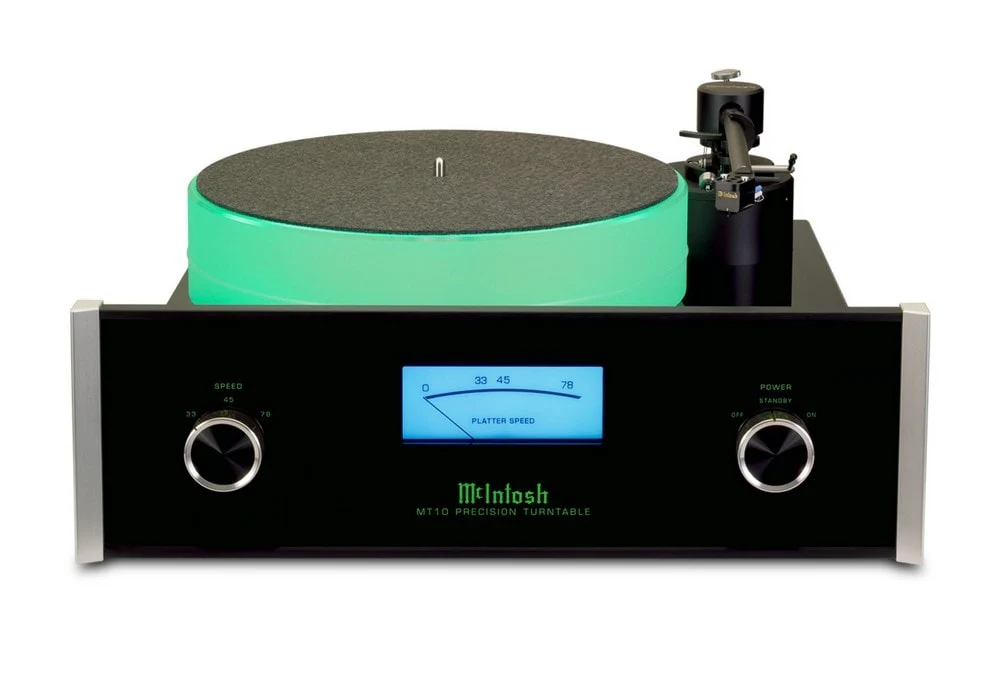

McIntosh MT10 Turntable

Turntables helped usher in the modern day world of high fidelity home audio. With some prized vinyl record collections dating back to the onset of hifi two-channel stereo, a McIntosh turntable will be able to deliver all the subtle nuances that your records contain.

McIntosh turntables combine classic design with modern styling elements, creating a unique piece to add to your home audio system.

OVERVIEW

With tracking force, anti-skate and cartridge position preset at the factory, the McIntosh MT10 delivers high performance LP playback with minimal set up. A custom tone arm features a rigid, dural-aluminum arm-tube gimbaled in two sapphire (horizontal) and two ceramic (vertical) bearings for the least possible friction.

A 0.5mV moving coil cartridge is included, and features an ebony body with an elliptical stylus. Enjoy a new level of music with the MT10 turntable. This source component will make your home audio system even better.

FEATURES

• Belt Drive
• MC Cartridge
• Packed Ready To Play
• Massive 12-Pound Acrylic Platter
• Magnetic Air Damped Bearing

SPECIFICATIONS

• CARTRIDGE TYPE: Moving Coil, Low Output
• OUTPUT LEVEL: 0.5 mV at 5 cm/s
• LOAD IMPEDANCE: 400 to 500 Ohms recommended
• FREQUENCY RESPONSE: 20Hz to 50kHz
• CHANNEL SEPARATION: Greater than 30dB at 1Khz
• COMPLIANCE: 6 x 10^-6 cm/dyne
• RECOMMENDED TRACKING FORCE: 2.4 g
• CHANNEL DIFFERENCE: Less than 0.3 dB at 1kHz
• TOTAL MASS: 11 g
• STYLUS: Elliptical Diamond
• CANTILEVER MATERIAL: Aluminum
• BEARING: Sapphire and Ceramic
• ARM TUBE: Dural-Aluminum
• COUNTERWEIGHT: Eccentric
• ADJUSTMENTS: VTA, Antiskate, Azimuth
• PLAYBACK SPEEDS: 33 1/3, 45 and 78 rpm
• MOTOR TYPE: DC Brushless
• SPEED CONTROL: Electronic w/ braking feature
• PLATTER: Silicon Acrylic
• PLATTER BEARING: Magnetic Suspended Ceramic
• STEREO OUTPUTS UNBALANCED: 1
• POWER CONTROL INPUT: Yes
• POWER CONTROL OUTPUT: Yes
• PLATTER LIGHT: Yes
• SPEED CONTROL FINE ADJUSTMENT: Yes
• DUST COVER: No
• DIMENSIONS (W X H X D): 17-1/2" (44.45cm) x 8-13/16" (22.38cm) x 21" (53.34cm) Note: Tone Arm Height will vary depending on the type of Cartridge installed.
• WEIGHT: 42 lbs (19 kg)
• SHIPPING WEIGHT: 63 lbs (28.6 kg)
