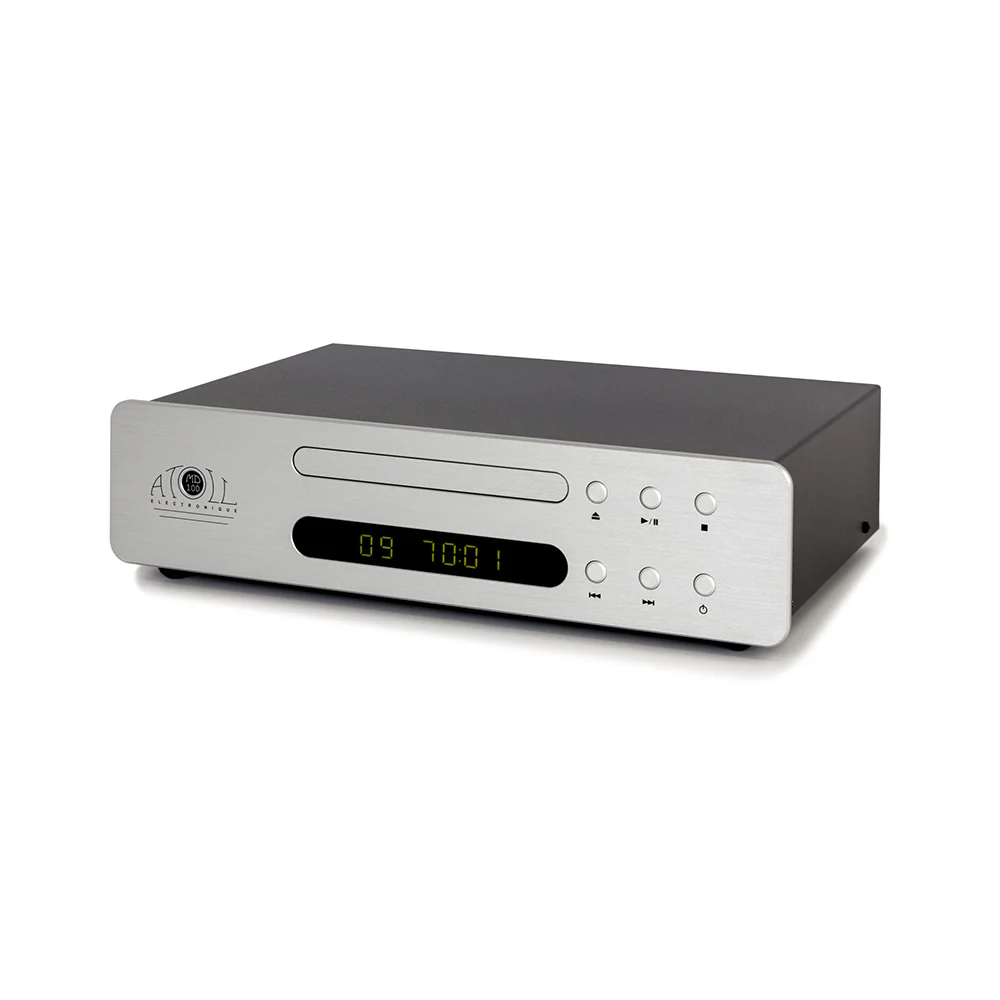

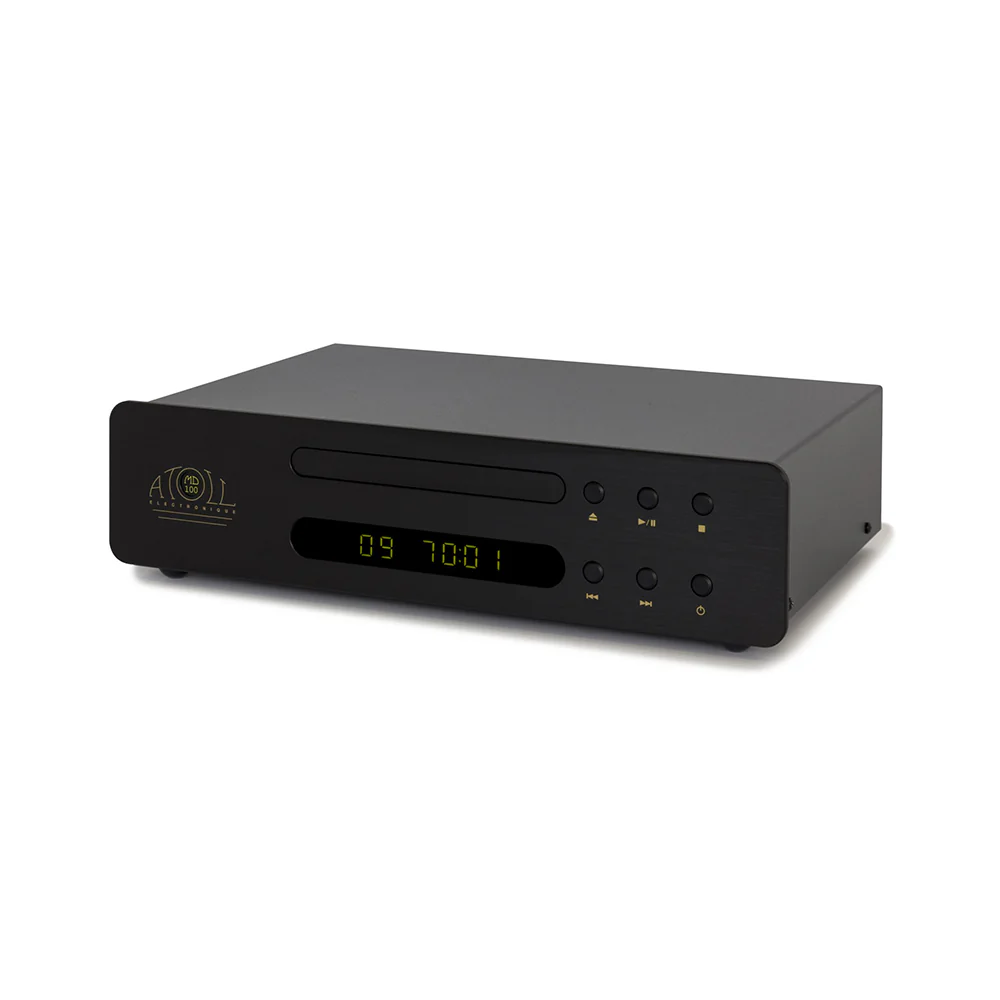

ATOLL MD100 Evolution Player

The latest addition to the Mini line, the MD100 Evolution player is the ideal complement to Atoll’s “Mini-system” elements for playing your CDs. This player benefits from quality components, particularly a TEAC CD reading mechanism compatible with CDs, CD-R, CD-RW, MP3 files, and WMA-AAC.

OVERVIEW

The ATOLL MD100 Evolution is a compact, high-fidelity CD player designed to complement ATOLL's Mini Line systems. It features a high-precision TEAC CD transport mechanism compatible with CDs, CD-Rs, CD-RWs, MP3, and WMA-AAC formats, and utilizes a Burr-Brown PCM5122 DAC for 24-bit/192 kHz resolution, delivering a dynamic range and signal-to-noise ratio of 112 dB. With its 4 mm brushed aluminum front panel, 7-segment LED display, and both analog and digital outputs, the MD100 Evolution combines elegant design with exceptional audio performance.

FEATURES



• 4 mm brushed aluminium front
• Low consumption 10 VA transformer
• 7-segment LED display
• BURR-BROWN PCM5122 converter:
  • 24 bits / 192 kHz
  • Dynamic range: 112 dB
  • Signal-to-noise ratio: 112 dB
• Double-sided circuit boards with nickel/gold finish
• Original TEAC central CD mechanism (latest generation)
• Pure audio CD player compatible with:
  • CD
  • CD-R
  • CD-RW
  • MP3
  • WMA-AAC
• Separate regulated power supply for audio stages
• Ability to manage display intensity
• ATOLL global remote control

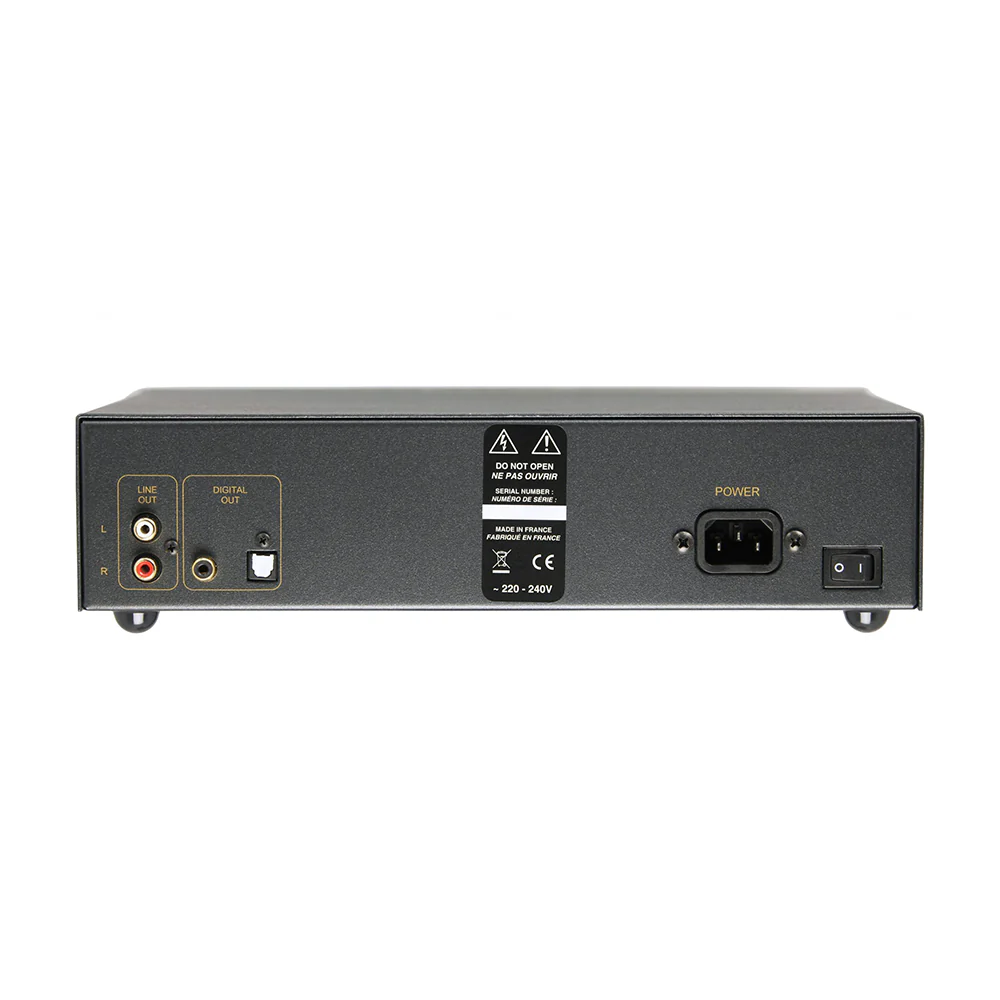

• Outputs:
  • 1 Left (L) and Right (R) analogue stereo output (RCA)
  • 1 Coaxial digital output
  • 1 Optical digital output



SPECIFICATIONS



• Power Supply: 10 VA
• Total Capacitance: 11,094 µF
• D/A Converter: PCM5122
• Dynamic Range: 112 dB
• Signal-to-Noise Ratio: 112 dB
• Distortion at 1 kHz: 0.002%
• Output Level: 2.0 Vrms
• Bandwidth: 5 Hz – 20 kHz
• Rise Time: 2.0 µs
• Standby Power Consumption: < 0.5 W
• Operating Power Consumption: 2 to 4 W
• Dimensions (W × D × H): 320 × 210 × 83 mm
• Weight: 2.4 kg
