ATOLL DR400 Evolution Transport

The DR400 EVO is the pure Drive version of the CD400 EVO, incorporating innovative technical solutions.

It has ATOLL’s latest Top loading mechanics, a solid aluminium platter, and a specific anti-vibration system. The digital stages and power supplies have been designed to provide maximum realism and density to the sound reproduction.

OVERVIEW

The Atoll DR400 Evolution is a flagship CD transport engineered for audiophiles seeking uncompromising digital playback quality. Featuring a top-loading mechanism with a solid aluminum platter and advanced anti-vibration design, it ensures precise disc reading and minimizes jitter. With high-speed LVDS signal processing and multiple digital outputs—including AES/EBU, coaxial, and optical—the DR400 Evolution delivers pristine digital signals to external DACs, making it an ideal centerpiece for high-end audio systems.

FEATURES



• 10 mm brushed, micro-blasted, and anodized aluminium front panel with high-precision engraving
• 2 mm steel chassis
• Solid aluminium sides
• New top-loading mechanism developed by ATOLL, featuring suspension mounting and a solid aluminum platter
• 30 VA linear transformer for general power supply
• 1.6 VA linear transformer for control logic
• Four regulated and independent power supplies
• Total capacitance: 88,000 µF
• Anti-vibration system
• High-speed LVDS (Differential Line Driver) circuit for formatting S/PDIF and AES/EBU signals
• High-contrast OLED display (can turn off after 5 seconds of inactivity)
• CD Text display
• ATOLL global remote control supplied as standard

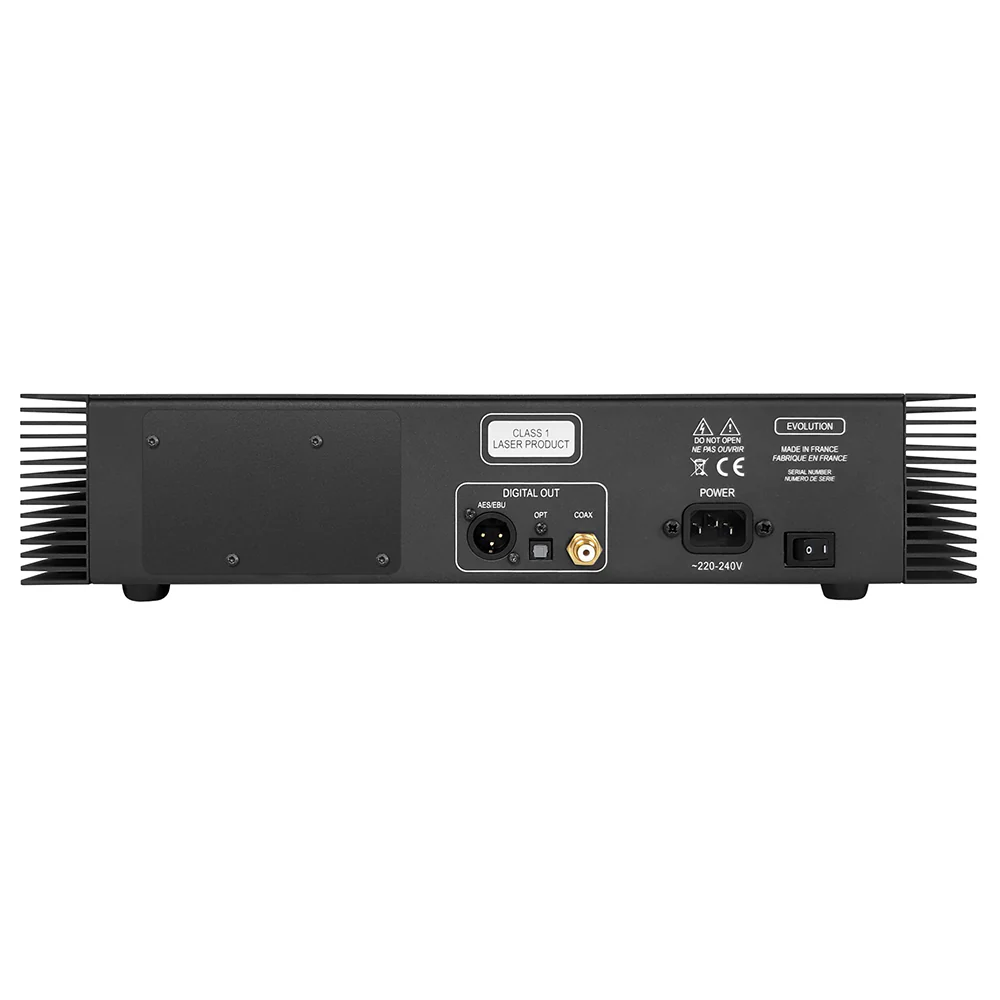

• Outputs:
  • 1 AES/EBU output
  • 1 Digital optical output
  • 1 Digital coaxial output



SPECIFICATIONS



• Power Supply: 30 VA + 1.6 VA
• Total Capacitance: 88,000 µF
• Output Signal Amplitude: 1 V
• Standby Power Consumption: < 0.5 W
• Operating Power Consumption: 4 to 10 W
• Dimensions (W × D × H): 440 × 340 × 100 mm
• Weight: 12 kg
