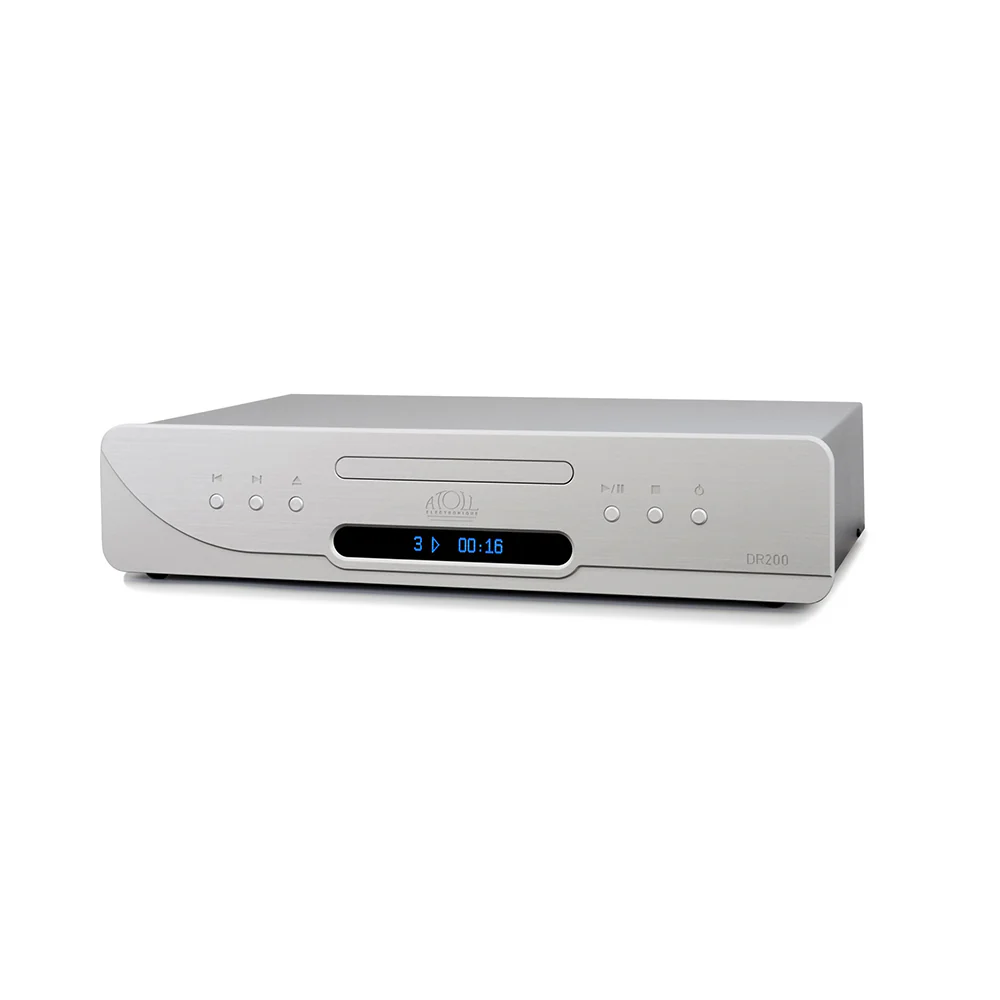

ATOLL DR200 Evolution Transport

The Evolution series CD drives benefit from numerous innovations in terms of power supplies or digital output stages. The mechanics have received specific anti-vibration treatment.

OVERVIEW

The Atoll DR200 Evolution is a high-performance CD transport meticulously engineered for audiophiles seeking pure digital playback. It features a robust 8 mm brushed aluminum front panel, a dedicated 30 VA linear power supply, and advanced jitter-reduction circuitry with LVDS signal isolation to ensure pristine digital output. Equipped with a latest-generation TEAC CD mechanism and offering coaxial, optical, and AES/EBU digital outputs, the DR200 Evolution delivers exceptional precision and reliability when paired with high-end external DACs.

FEATURES



• 8 mm brushed aluminium front panel
• Linear power supply for digital stages with a specific 30 VA transformer
• 1.6 VA transformer (low consumption)
• Specific anti-vibration treatment for CD mechanics
• Board optimized for jitter reduction
• Digital signal isolation by LVDS circuit (signal reformatting)
• Pure audio CD player compatible with:
  • CD
  • CD-R
  • CD-RW
  • MP3
  • WMA-AAC
• Original TEAC central CD mechanics (latest generation)
• Double-sided printed circuits with nickel/gold finish
• Low-power OLED display
• CD-Text display
• ATOLL global remote control

• Outputs:
  • 1 Coaxial output on high-quality PTFE insulated connector
  • 1 Optical output
  • 1 AES/EBU output



SPECIFICATIONS



• Power Supply: 30 + 1.6 VA
• Total Capacitance: 23,000 µF
• Output Signal Amplitude: 1 V
• Standby Power Consumption: < 0.5 W
• Operating Power Consumption: 4 to 12 W
• Dimensions (W × D × H): 440 × 284 × 95 mm
• Weight: 7 kg
