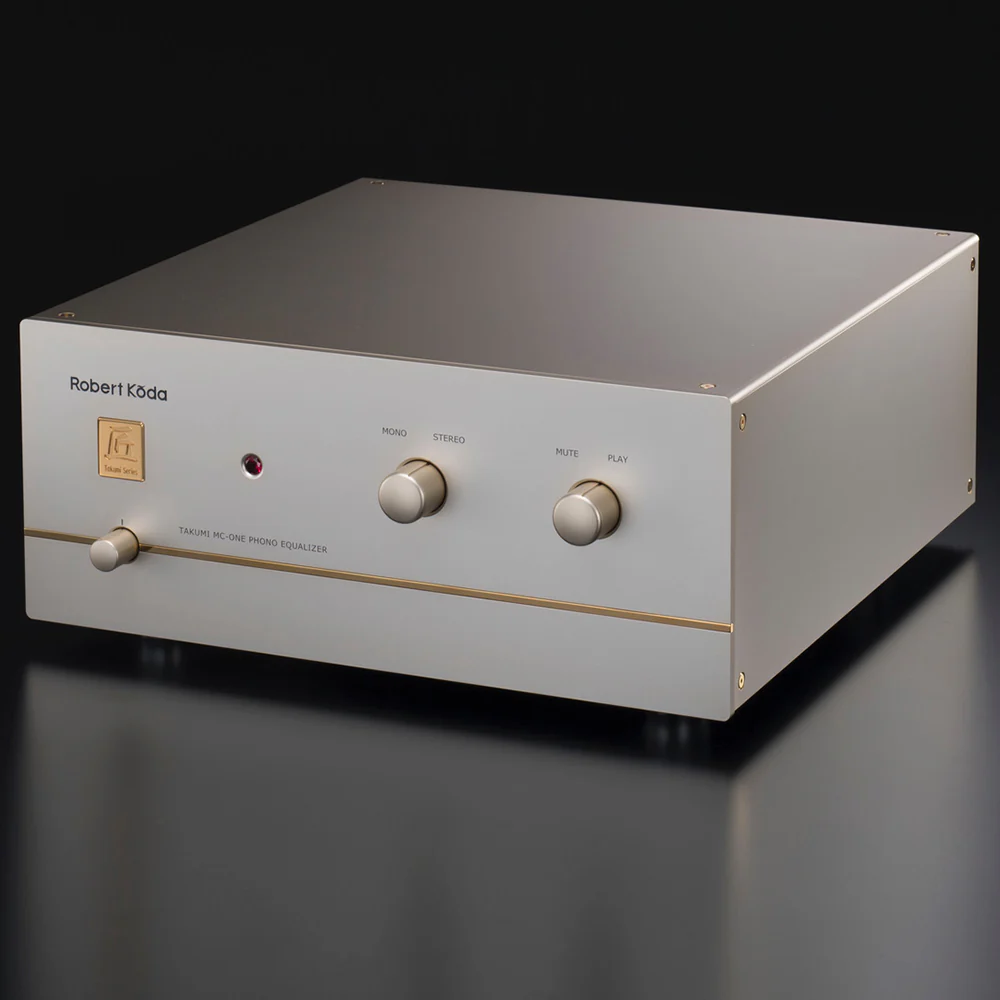

The MC-One is Koda’s flagship phono equalizer.

OVERVIEW

Designed from the ground up specifically for moving coil cartridges, MC-One will delight the modern record listener with greater insight, resolution and musicality than thought possible.
Conventional circuitry this is not. Plenty of gain (72dB), massive overload margin and a propriety equalization topology are but a glimpse into this work.

FEATURES

With 72dB of available gain, the MC-One delivers a combination of ultra-low noise, wide dynamic headroom, and an overload margin that sets it apart from every competing design. Dedicated exclusively to the moving coil cartridge, it is optimized for that singular task without compromise of any kind. Like every Robert Koda product, it operates with no negative feedback, no servo circuits, and no printed circuit boards anywhere in the signal path.

SPECIFICATIONS

Inputs
- One set on RCA and one set XLR, both single ended.
Outputs
- One set RCA plus one set XLR. Balanced or SE selectable.
Output impedance
- 60 ohms SE or 2X30 ohms balanced.
Equalisation
- RIAA by propriety techniques.
Gain
- Selectable with out opening the unit. 56, 64, 72dB.
Maximum Output
- 20V RMS any audio or ultrasonic frequency, any gain setting.
Noise
- -78dB (A) weight at 72dB gain.
Loading
- 20 ohm thru 1K in six positions. Custom values possible with out modification.
Other controls
- Mute, Mono / Stereo, power.
Dimensions
- 389mm Wide, 385mm Deep, 158mm High excluding feet.
Packing
- Flight case delivered in high strength cardboard.
AC operation
- 210 thru 256V or 105 thru 128V. Range manually selected.

AVAILABILITY

This item is made to order. Typical production time is 6-8 months.

For in-store listening sessions please contact us to schedule a private listening session. An appointment is required for this bespoke item. CONTACT US HERE or SCHEDULE A DEMO
